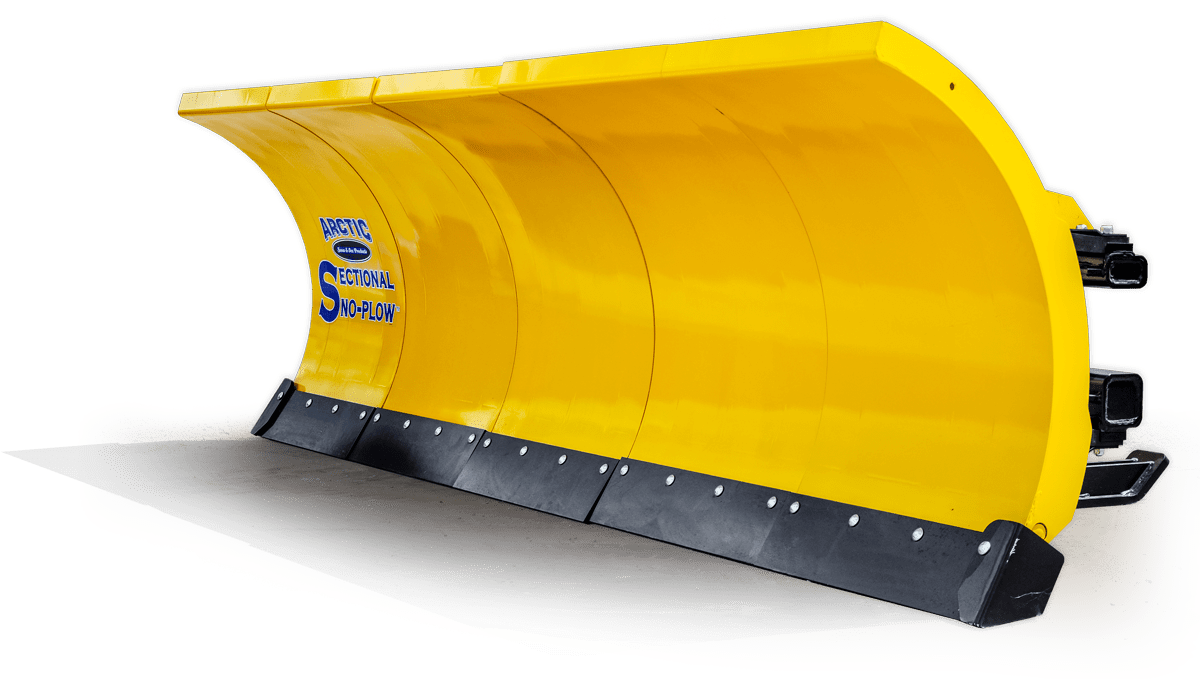

Attacking snow from a whole new angle

The Arctic Sectional Sno-Plow™ is a game-changer in the field of snow removal. Its design, durability, and functionality combine to create a powerhouse solution for efficiently clearing snow-covered roads and surfaces. As communities face the challenges of winter, Arctic Snow and Ice Products continue to lead the way with innovative solutions that redefine the standards of snow removal equipment. The Sectional Sno-Plow™ stands as a testament to the company’s commitment to excellence, safety, and environmental responsibility in the realm of snow and ice management.

Sectional Sno-PlowTM
Features

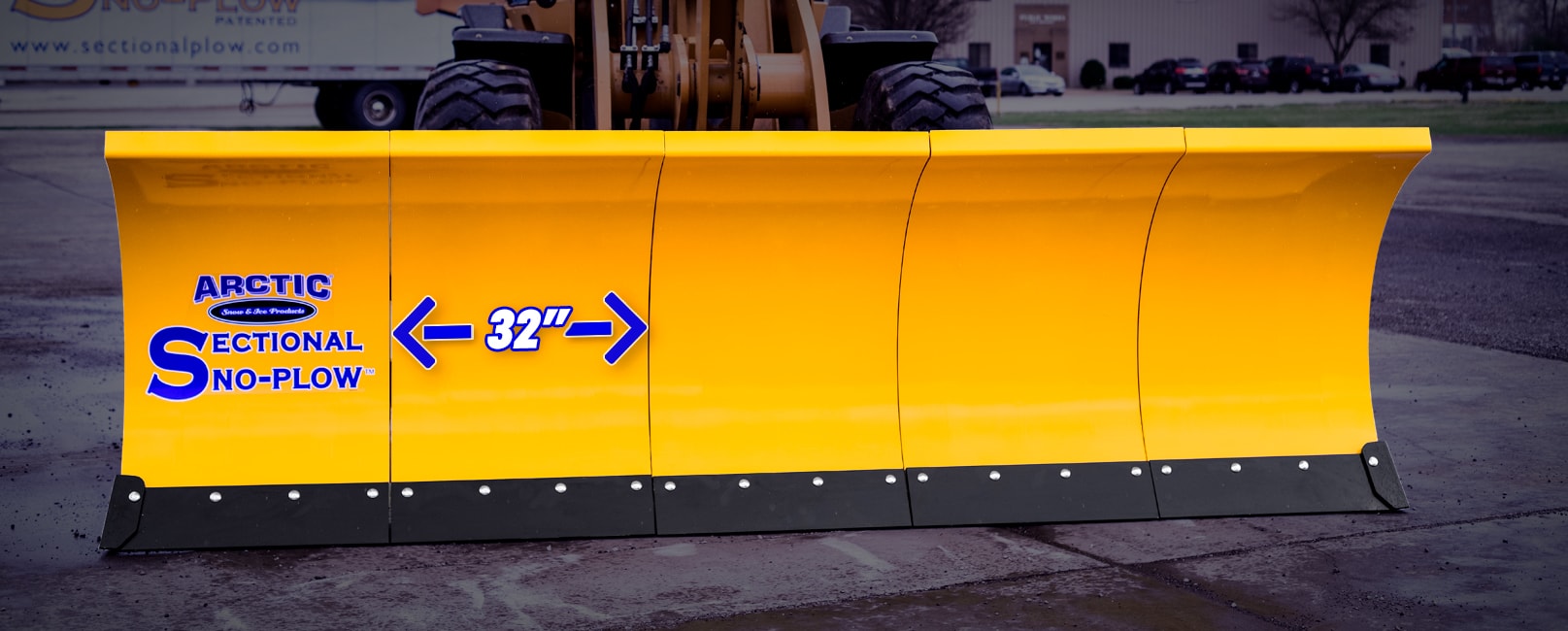

  • Individual sectioned moldboards

    Comprised of 32 inch independent sections on the HD models and 30 inch on the LD models, to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

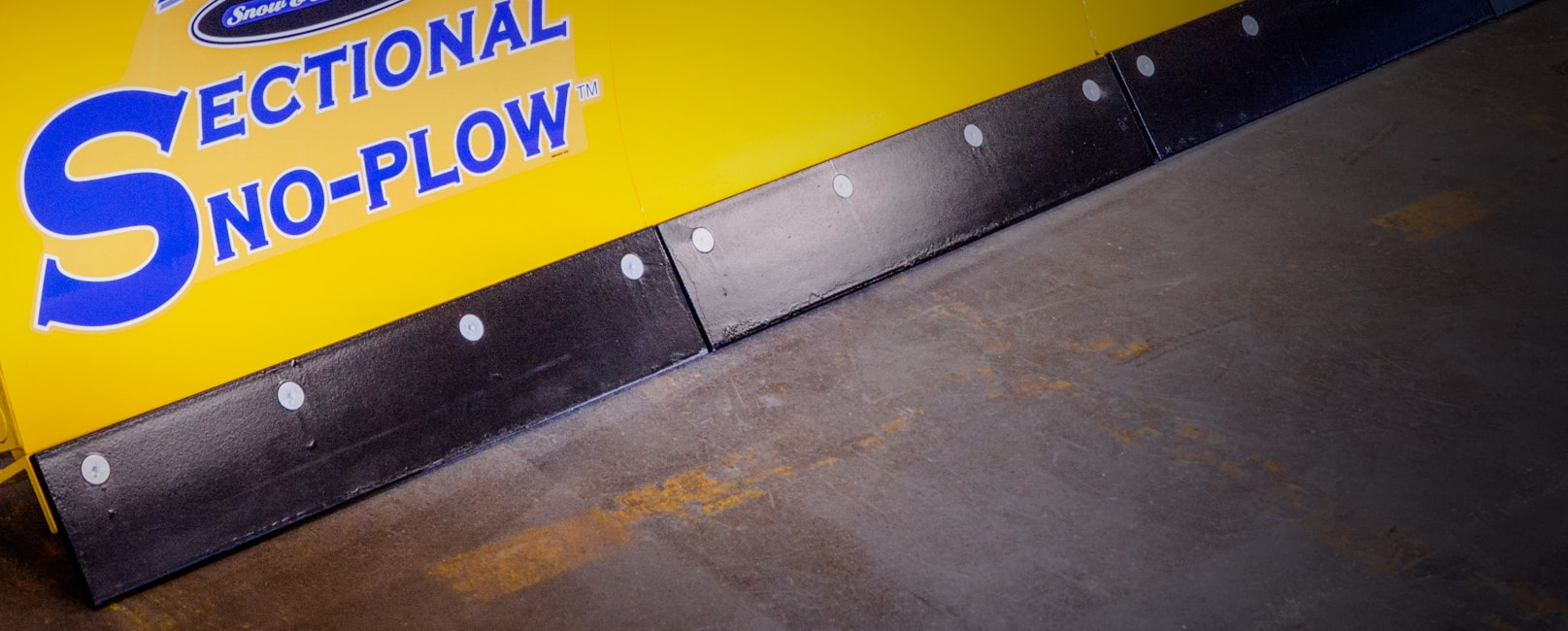

  • Steel Spring-Loaded trip Cutting Edges

    Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

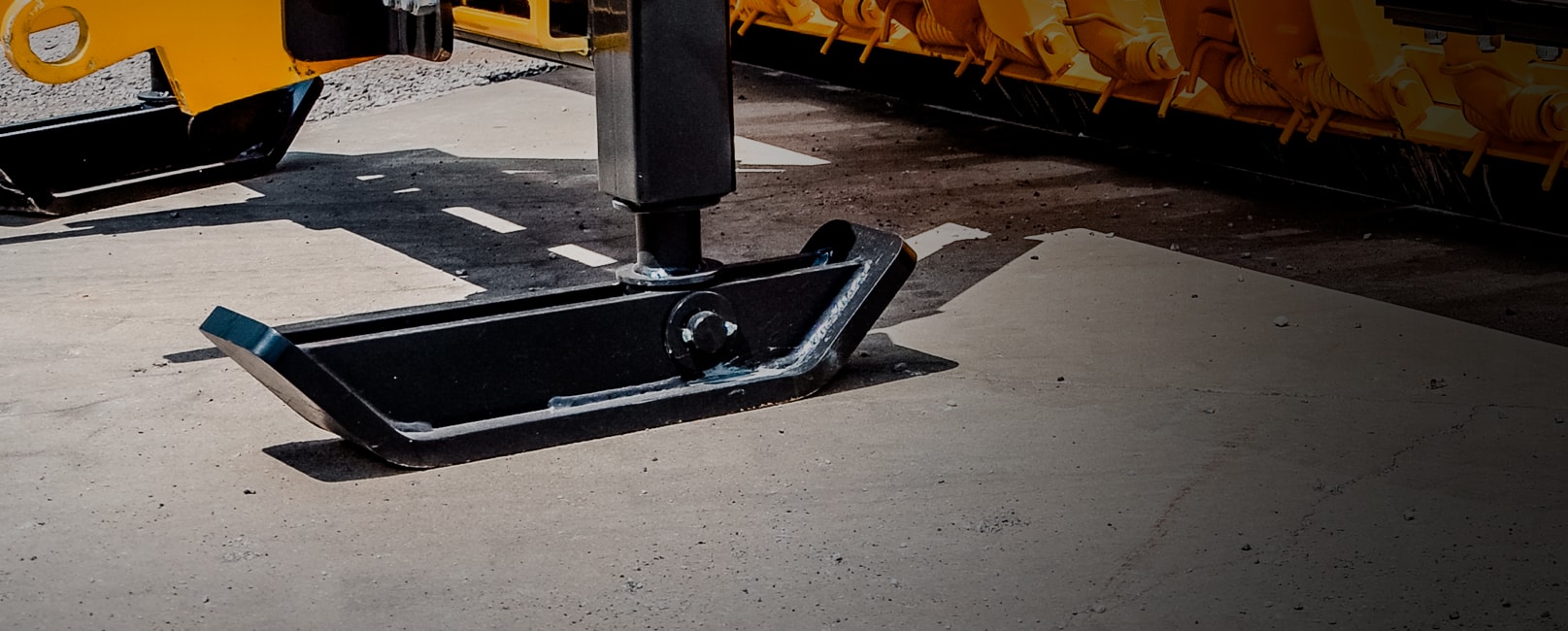

  • AR400 Steel Guide/Wear Shoes

    Allows for proper balancing during hook-up while providing A-frame alignment. The wear shoes also help with leveling the plow when in use.

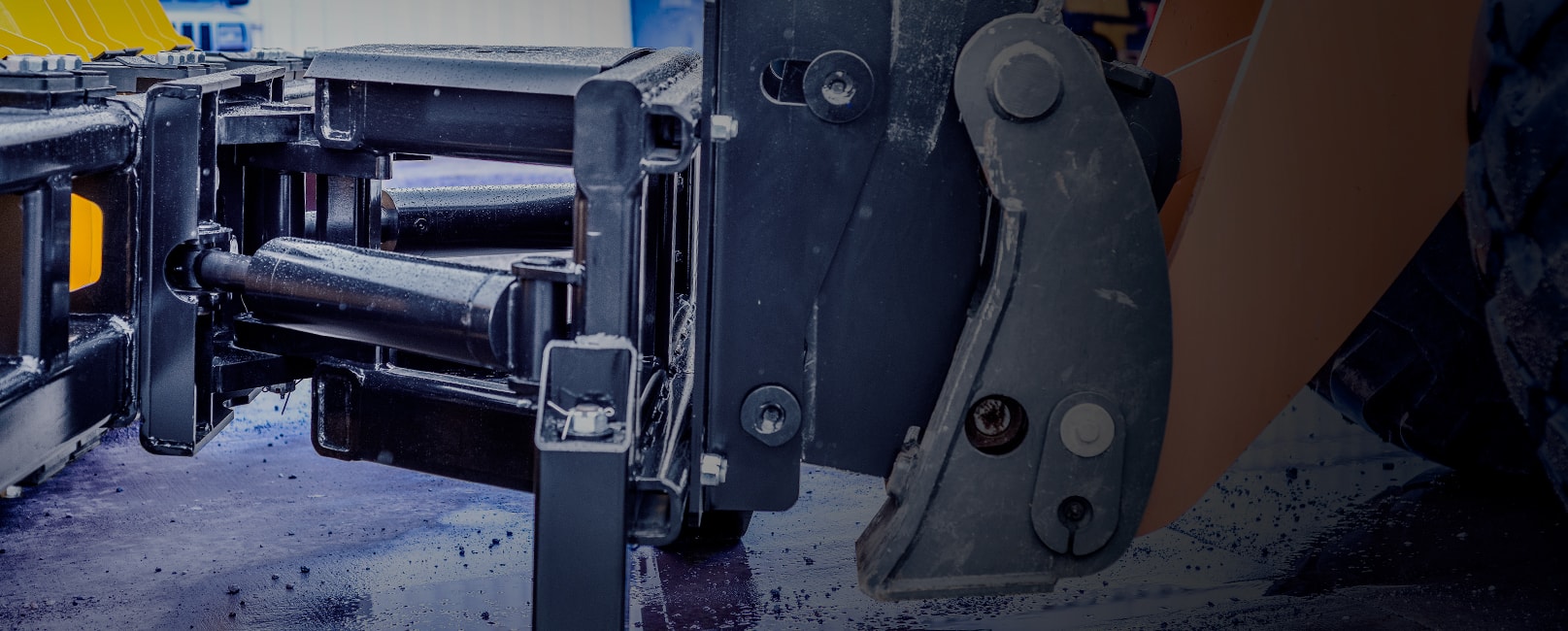

  • Hydraulic Powered

    Rotates up to 30° on both sides. All models come with standard hose kits and flow limiters installed.

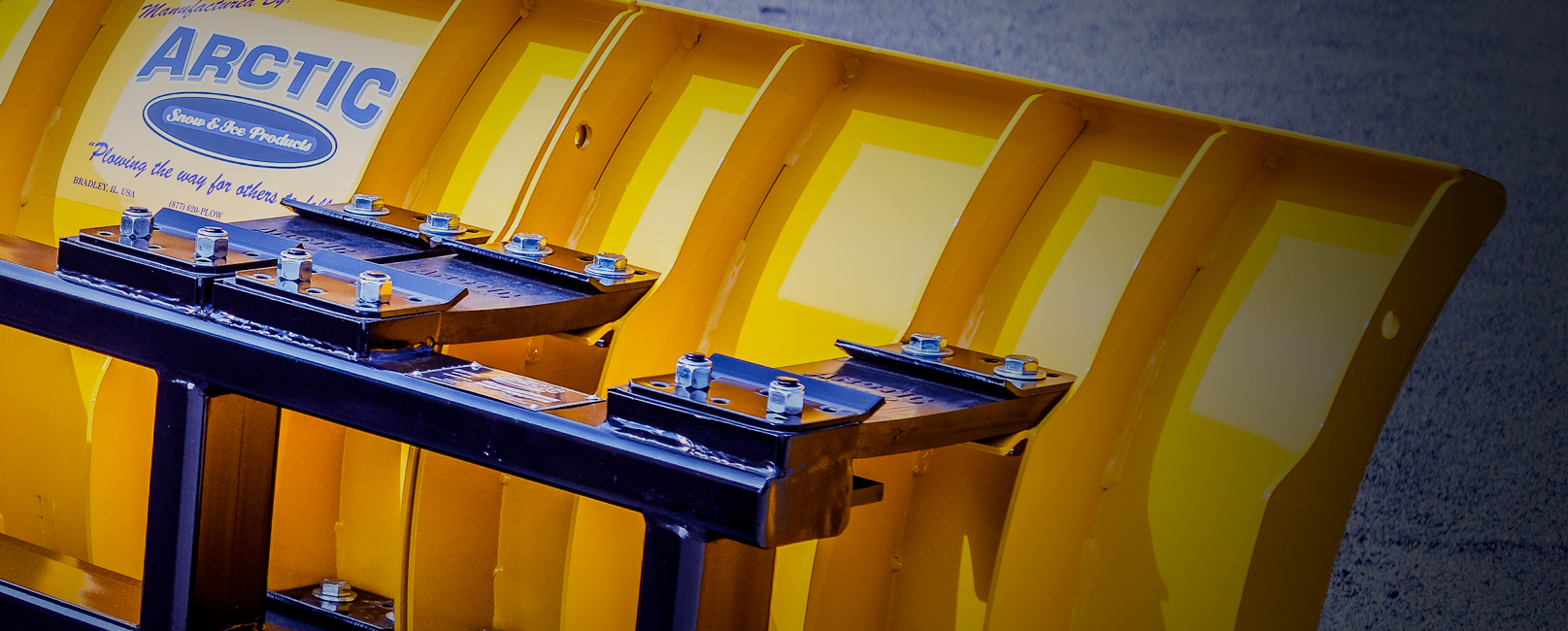

  • Polyurethane mounting blocks

    Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

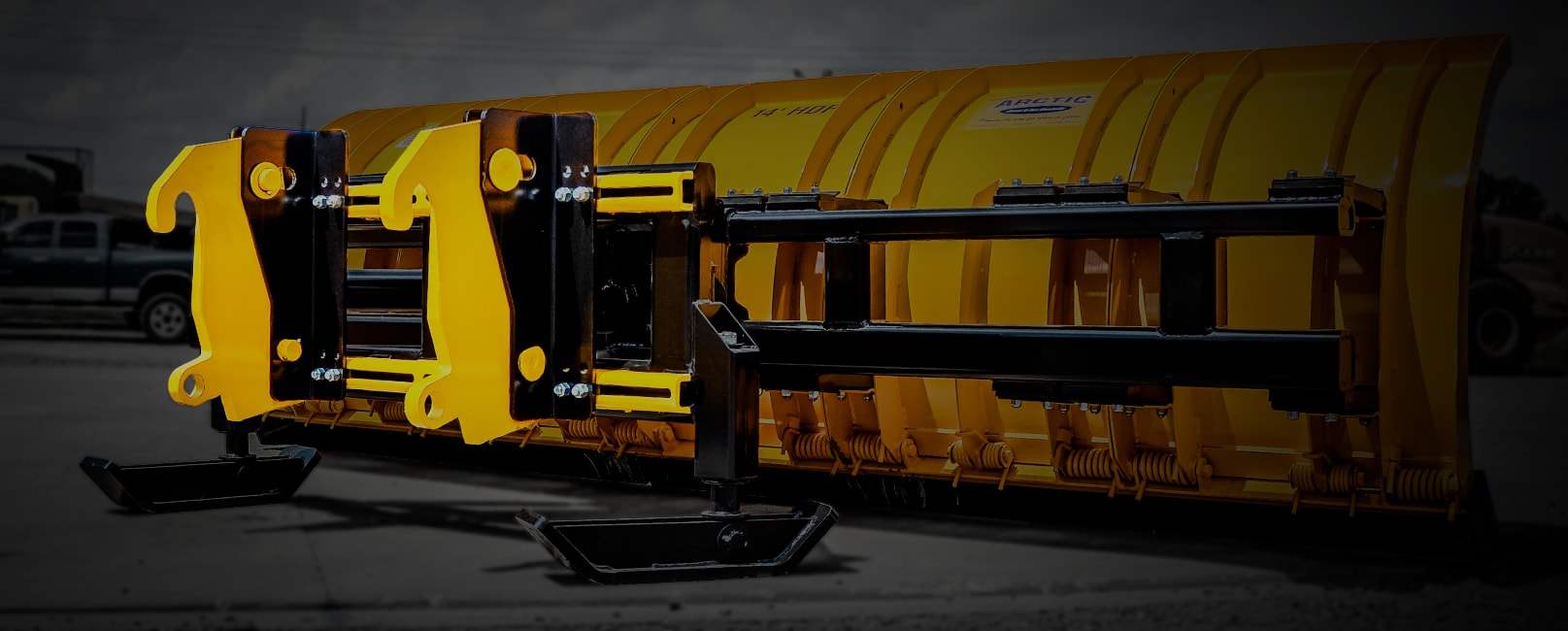

  • Slip-hitch™ Universal coupler System

    Allows for quick & easy changeover to any quick connect couplers or bucket mounts to fit any equipment manufacturer’s mounting system. It floats up and down independently from the machine, and automatically self-levels the plow. It also allows the machine to keep all four tires on the ground for full traction.

  • Individual sectioned moldboards

    Comprised of 32 inch independent sections on the HD models and 30 inch on the LD models, to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

  • Steel Spring-Loaded trip Cutting Edges

    Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

  • AR400 Steel Guide/Wear Shoes

    Allows for proper balancing during hook-up while providing A-frame alignment. The wear shoes also help with leveling the plow when in use.

  • Hydraulic Powered

    Rotates up to 30° on both sides. All models come with standard hose kits and flow limiters installed.

  • Polyurethane mounting blocks

    Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

  • Slip-hitch™ Universal coupler System

    Allows for quick & easy changeover to any quick connect couplers or bucket mounts to fit any equipment manufacturer’s mounting system. It floats up and down independently from the machine, and automatically self-levels the plow. It also allows the machine to keep all four tires on the ground for full traction.

    Sectional Sno-PlowTM
    Specifications
    • Light Duty Models
      30" Wide Moldboards
      Model Width Height Weight
      PA LD-7.5 91" 32" 1,200 lbs
      PA LD-10 121" 32" 1,600 lbs
      PA LD-12.5 151" 32" 2,000 lbs
      PA LD-15 181" 32" 2,400 lbs
      Model
      PA LD-7.5
      Width
      91"
      Height
      32"
      Weight
      1,200 lbs
      Model
      PA LD-10
      Width
      121"
      Height
      32"
      Weight
      1,600 lbs
      Model
      PA LD-12.5
      Width
      151"
      Height
      32"
      Weight
      2,000 lbs
      Model
      PA LD-15
      Width
      181"
      Height
      32"
      Weight
      2,400 lbs
    • Heavy Duty Models
      32" Wide Moldboards
      Model Width Height Weight
      PA HD-10.5 129" 50" 3,950 lbs
      PA HD-13.5 161" 50" 4,400 lbs
      PA HD-16 193" 50" 4,850 lbs
      Model
      PA HD-10.5
      Width
      129"
      Height
      50"
      Weight
      3,950 lbs
      Model
      PA HD-13.5
      Width
      161"
      Height
      50"
      Weight
      4,400 lbs
      Model
      PA HD-16
      Width
      193"
      Height
      50"
      Weight
      4,850 lbs
