An Arctic Sectional — now for your pickup

Built on Arctic's sectional technology, the same tech previously reserved for Arctic heavy equipment attachments, like the Sectional Sno-Pusher™ and Sno-Wing™, the RazorBack is transforming the truck plow industry. Delivering the most significant advancements in truck plows in decades, Arctic isn't just in the game; we're shaping its future. It's time for a new era of innovation, and the RazorBack is leading the way.

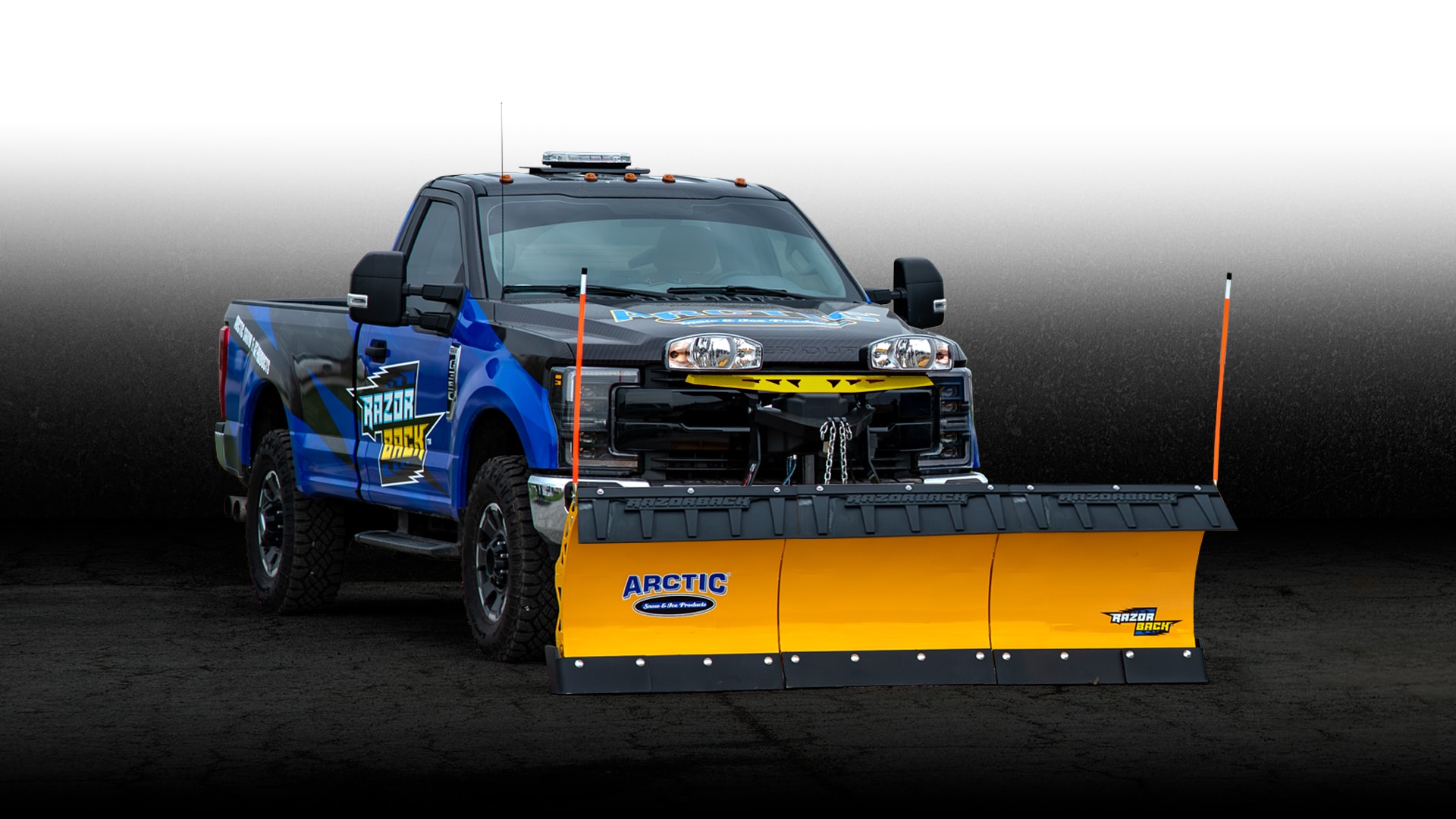

RazorBack Strait PlowTM
Features

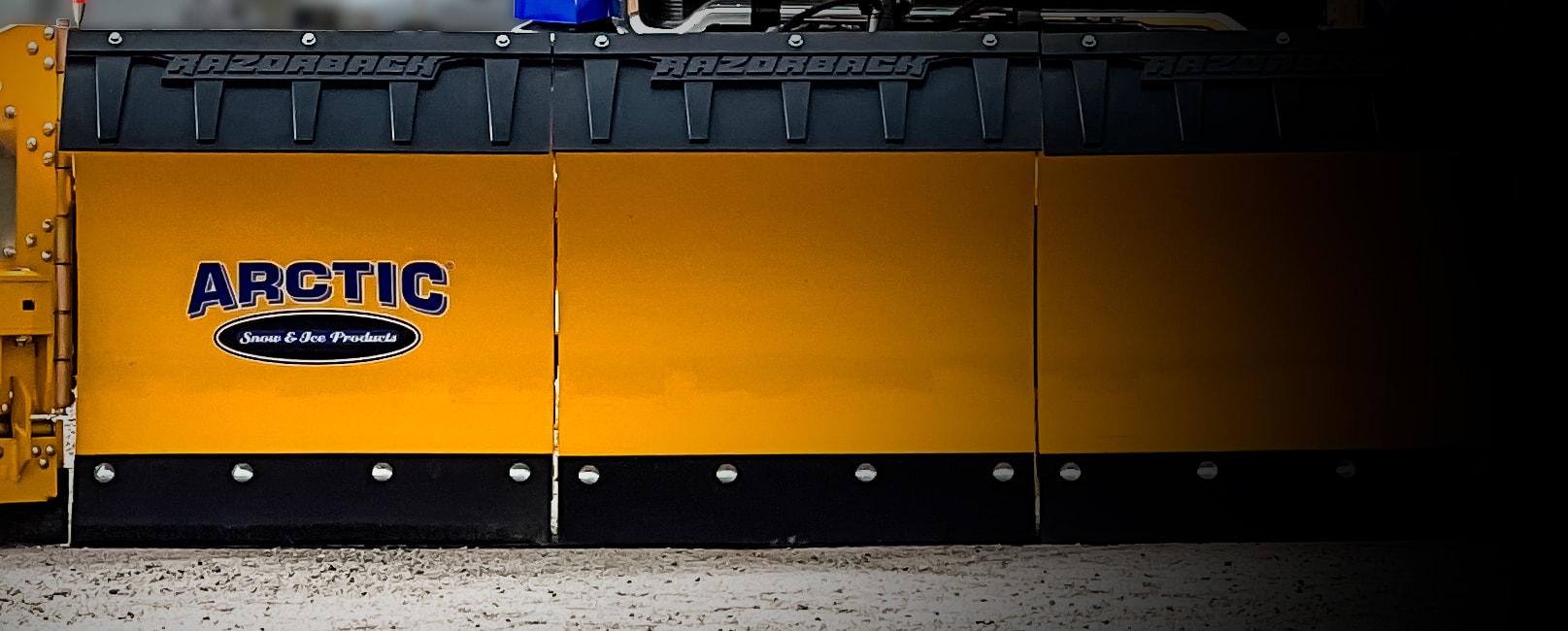

  • Independent Sectioned Moldboards

    Comprised of 30 inch independent sections to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

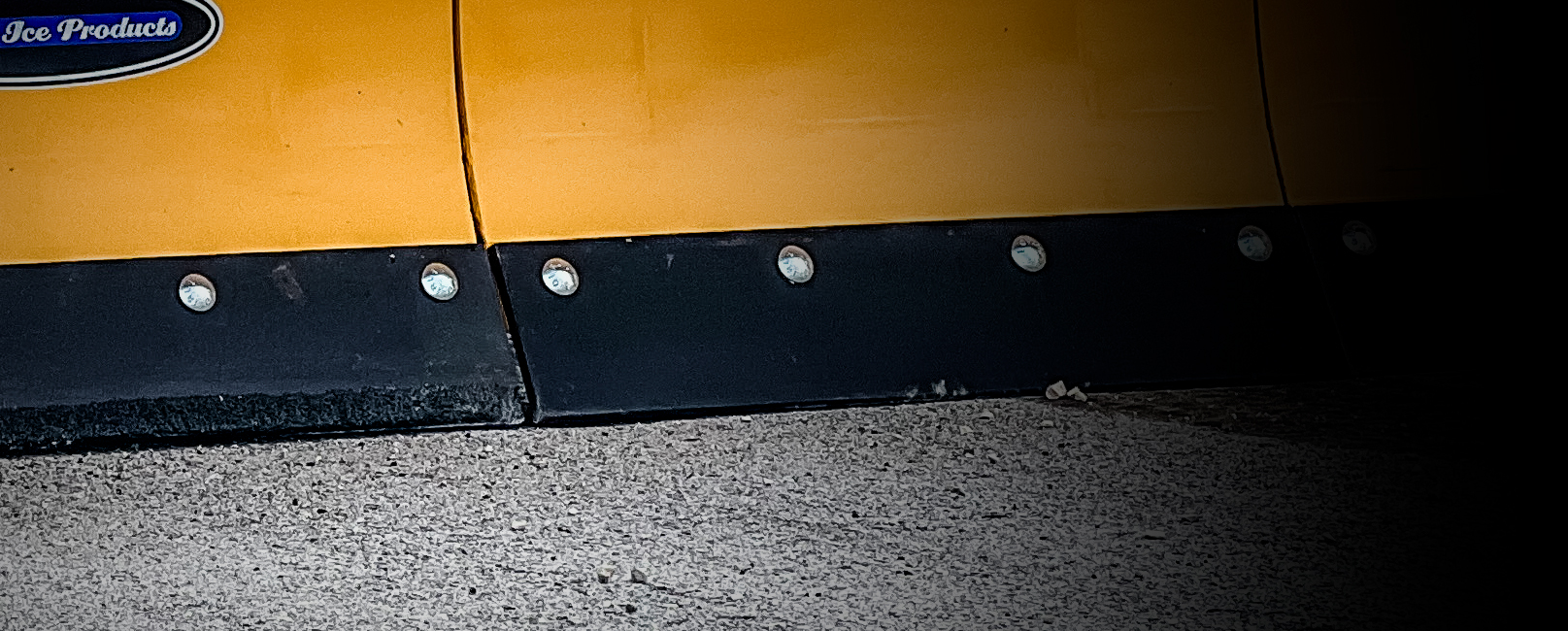

  • Hardox 450 Trip Cutting Edges

    Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

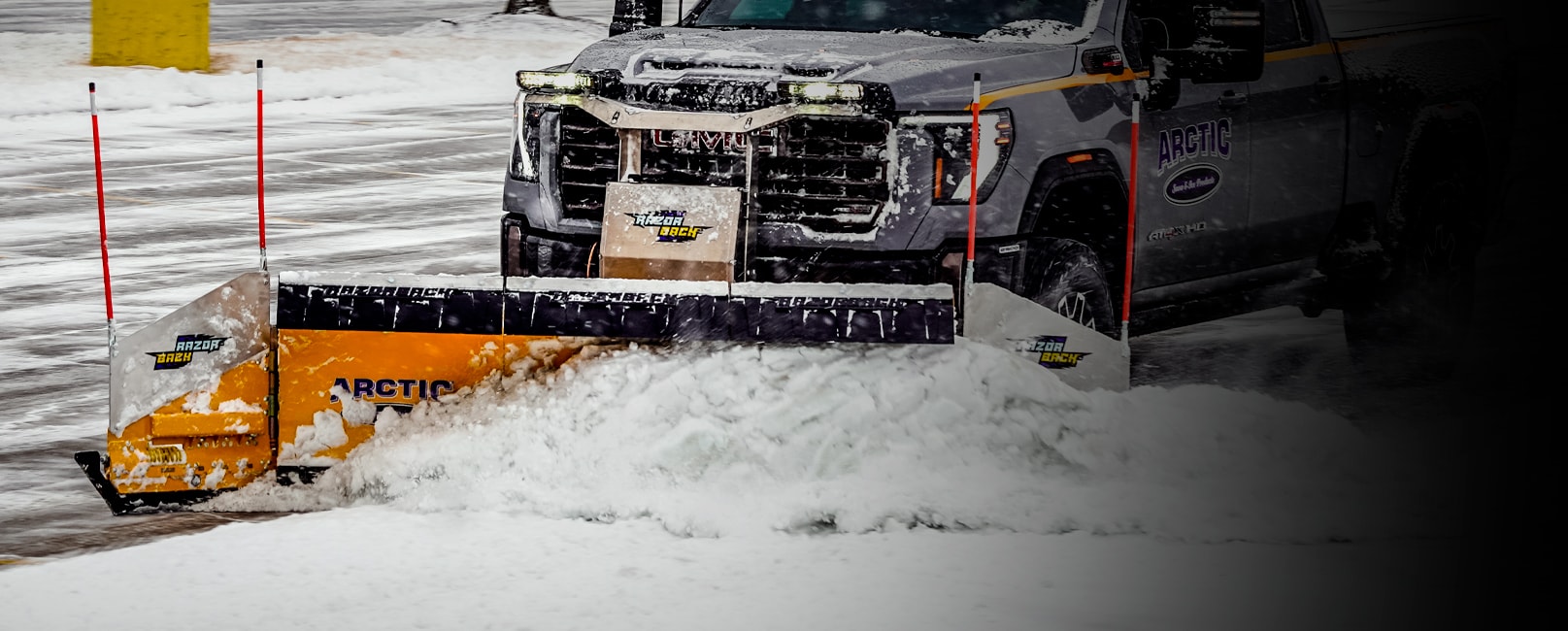

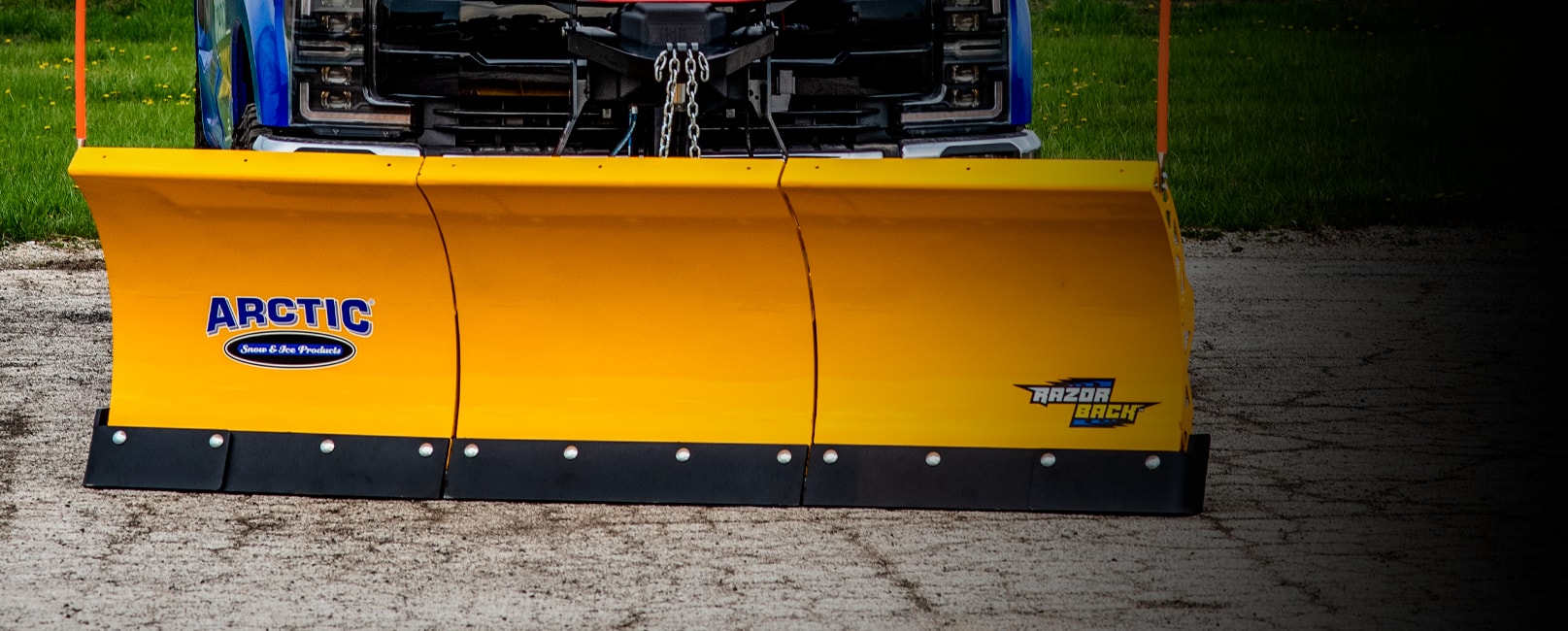

  • Hydraulic Power Angling

    Plow hydraulically angles up to 25 degrees per side

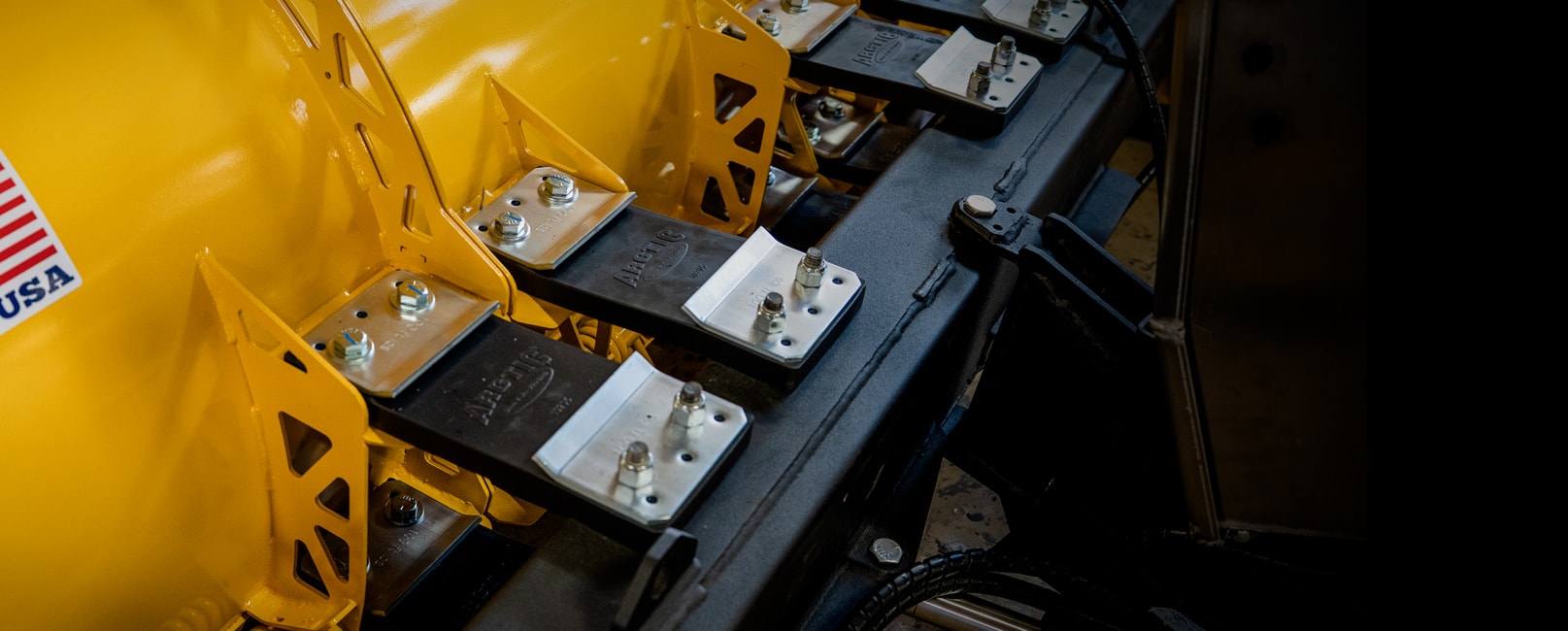

  • Polyurethane mounting blocks

    Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

  • Independent Sectioned Moldboards

    Comprised of 30 inch independent sections to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

  • Hardox 450 Trip Cutting Edges

    Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

  • Hydraulic Power Angling

    Plow hydraulically angles up to 25 degrees per side

  • Polyurethane mounting blocks

    Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

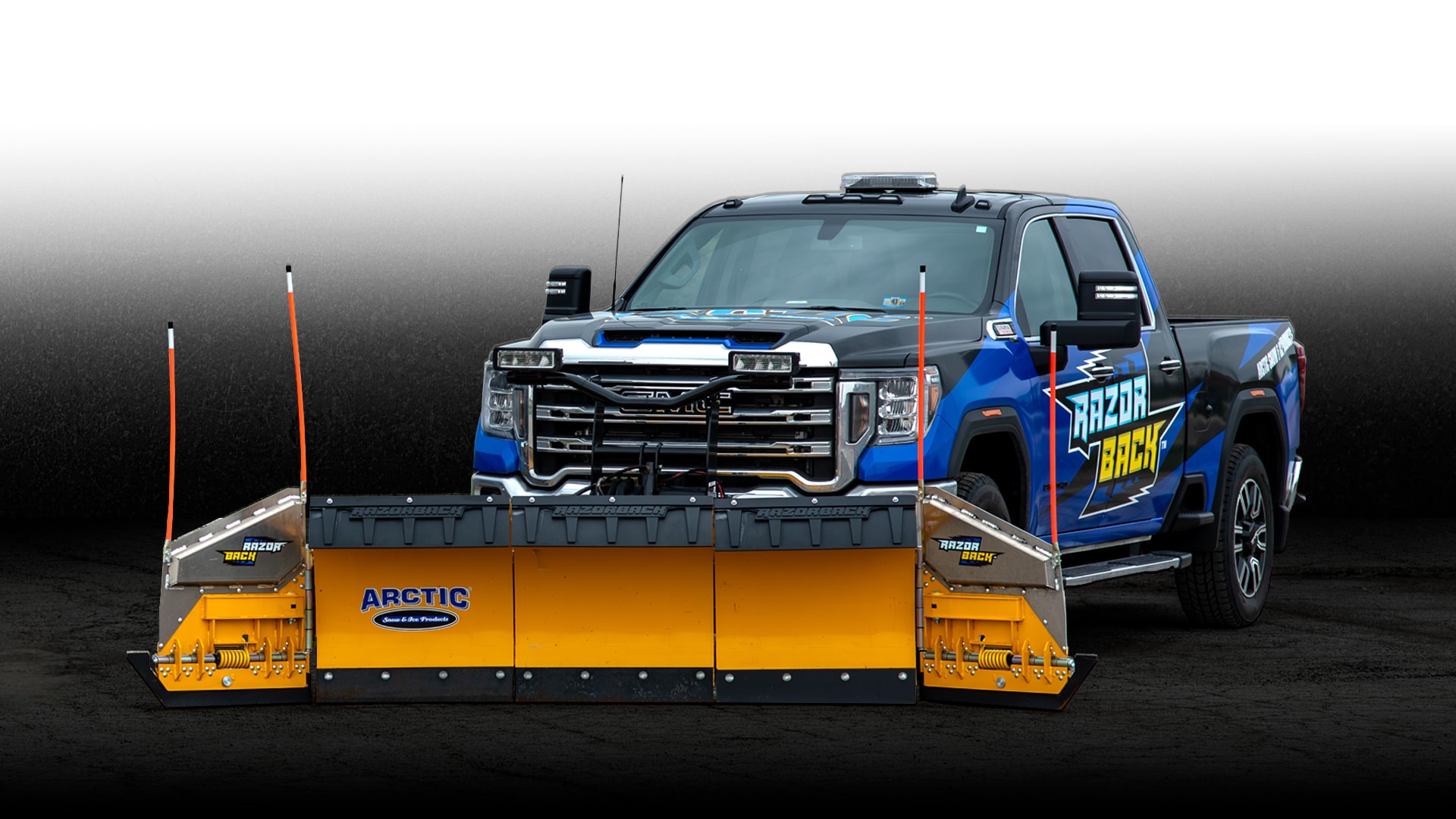

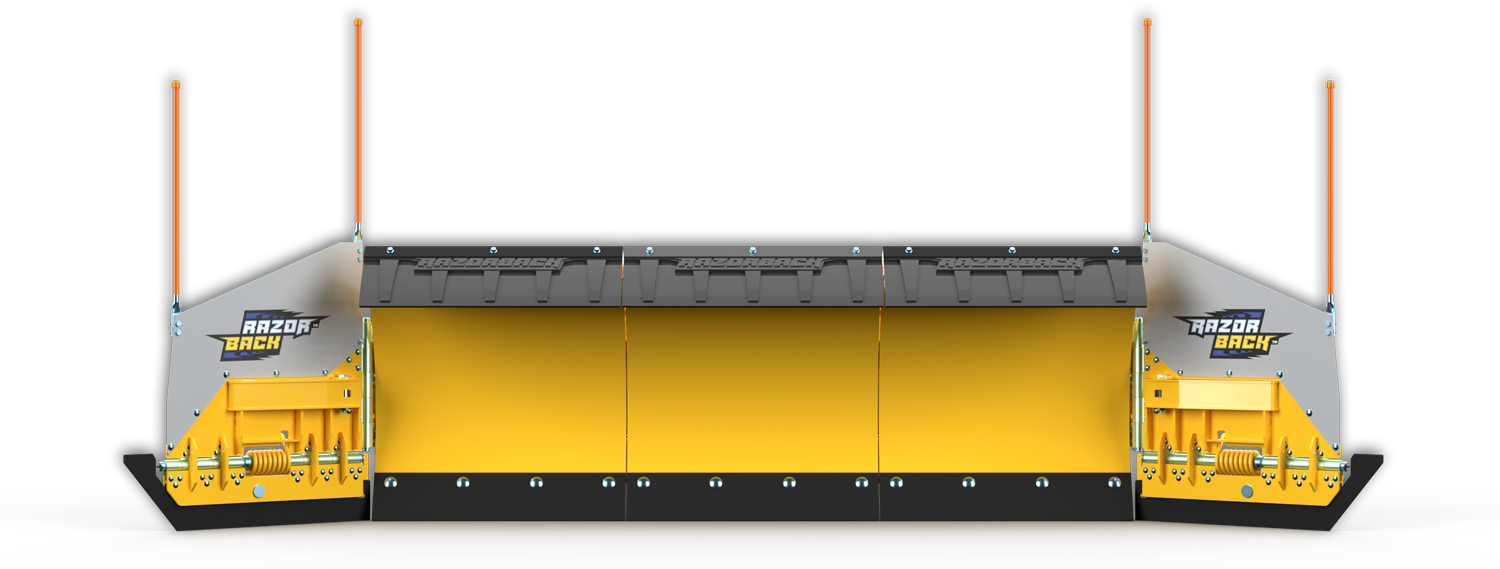

    RazorBack Wing PlowTM
    Features

    • Independent Sectioned Moldboards

      Comprised of 30 inch independent sections to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

    • Hardox 450 Trip Cutting Edges

      Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

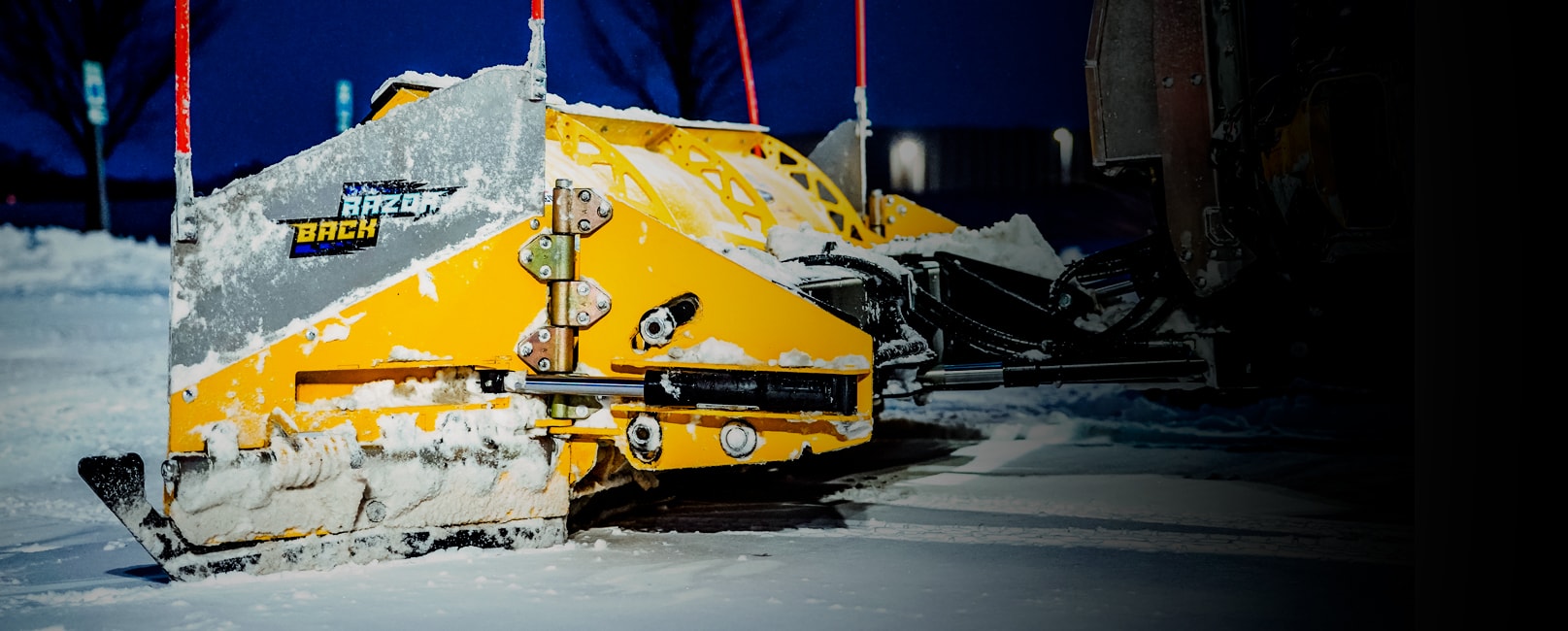

    • Free Floating Wings

      • Hydraulically adjustable between transport, plow and scoop mode.
      • Floating, AR400 spring-loaded tripping cutting edge on each wing, that conform to the pavement and scrapes to the ground.
      • Designed to trip over obstacles such as curbs and manhole covers.

    • Hydraulic Power Angling

      Plow hydraulically angles up to 25 degrees per side

    • Polyurethane mounting blocks

      Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

    • Independent Sectioned Moldboards

      Comprised of 30 inch independent sections to let the plow contour to the grade of any surface for cleaner passes. Each moldboard section independently trips over unseen obstacles beneath the snow.

    • Hardox 450 Trip Cutting Edges

      Carbon-harden steel cutting edges scrape compacted snow and ice down to the pavement, eliminating follow-up plowing. The spring-loaded design allows the cutting edge to trip back on pavement anomalies up to 4” in height.

    • Free Floating Wings

      • Hydraulically adjustable between transport, plow and scoop mode.
      • Floating, AR400 spring-loaded tripping cutting edge on each wing, that conform to the pavement and scrapes to the ground.
      • Designed to trip over obstacles such as curbs and manhole covers.

    • Hydraulic Power Angling

      Plow hydraulically angles up to 25 degrees per side

    • Polyurethane mounting blocks

      Durable, specially-engineered polyurethane mounting blocks secure each moldboard section to the plow’s mainframe, absorbing impact to protect the plow, carrier and operator. The “polyblocks” also allow each section of moldboard to independently move up and down over obstacles.

      Project Endgame
      Project Endgame
      RazorBack PlowTM
      Specifications
      RazorBack Wing Retrofit Plow
      • Transport-Mode Width
        8'6"
      • Plow-Mode Width
        12'0"
      • Scoop-Mode Width
        10'10"
      • Total Moldboard Width
        7'6"
      • Individual Moldboard Width
        30"
      • Moldboard Height
        29"
      • Kit Weight
        1,020 lbs

      Compatible with:

      • Western® Wide-OutTM
      • Western® Wide-OutTM XL
      • Boss EXT
      • Fisher® XLSTM
      RazorBack Strait Retrofit Plow
      • Total Width
        8'6"
      • Individual Moldboard Width
        34"
      • Moldboard Height
        32"
      • Kit Weight
        850 lbs

      Compatible with:

      • Western® Plus ProTM
      • Boss Super-Duty
      • Fisher® HD2TM
